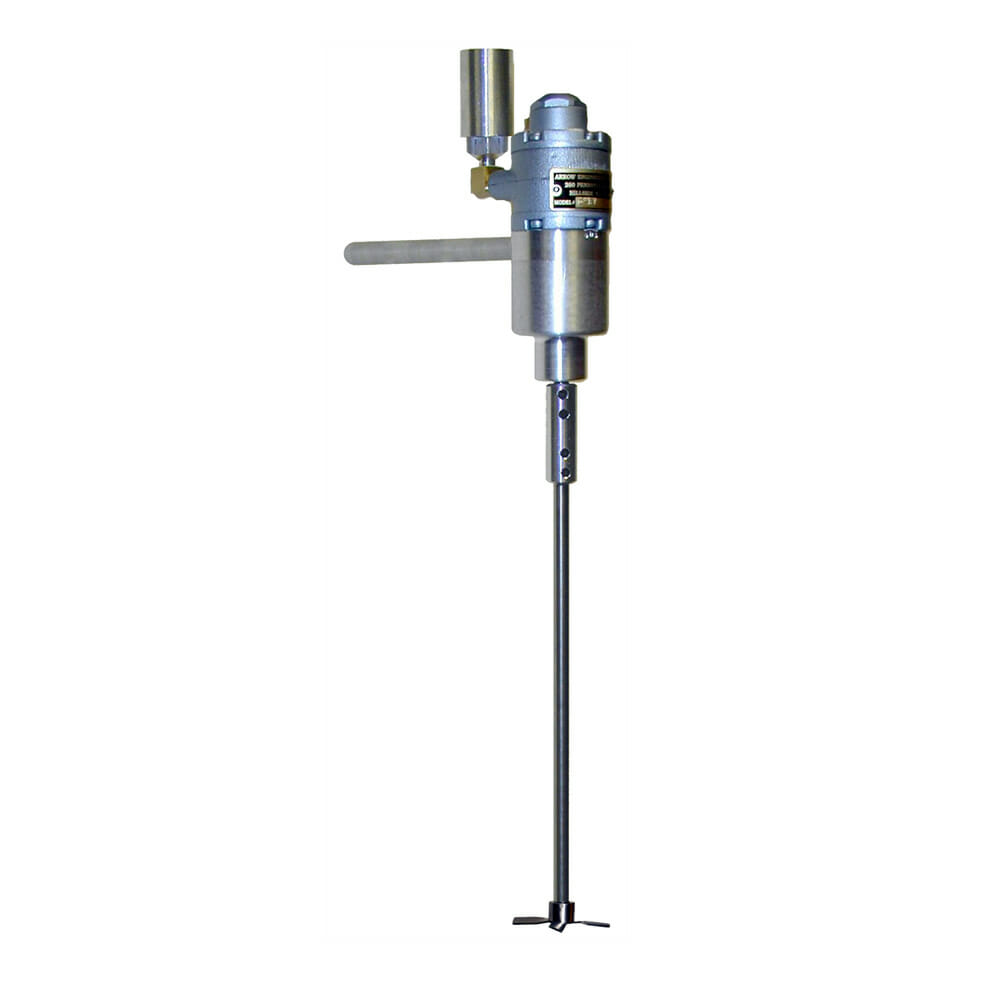

Model G-RV Air Mixer

The Air Mixer: Model G-RV from Arrow Mixing Products is a robust and reliable solution designed for medium to heavy-duty industrial mixing applications. With a maximum speed of 1,000 RPM, this air-powered mixer is ideal for a wide range of tasks, ensuring consistent performance and efficiency. Whether you’re working with small batches or handling larger volumes, the Model G-RV delivers the power and control needed to achieve optimal results. Explore the features and benefits of this versatile air mixer to see how it can enhance your operations.

Key Features and Specifications:

• Propeller Shaft: 3/8″ diameter x 12″ length (S-316-12)
• Propeller: 2 1/2″ diameter (#25A)
• Aluminum Coupling: (CPL22-375)
• Mounting Rod: 9/16″ diameter x 10″ length (#15)
• Hose: 4-foot length (#26)
• Muffler: (#19)
• Horsepower: 1/2 HP
• Batch Size (Water): 100 liters
• Gear Ratio: 7 to 1
• Max RPM: 1,000
• Torque: 26 in-lbs at 80 psi and motor speed 6,000 RPM
• Air Input PSI: 30 to 80 PSI
• Air Consumption: 27 cfm at 80 psi
• Motor Shaft Diameter: 3/8″
• Shipping Weight: 6 lbs (2.7 kg)

Enhanced Control and Safety

The Model G-RV is engineered to provide enhanced control during mixing operations, making it suitable for a variety of applications. The precise gear ratio and torque settings ensure that the mixer operates smoothly, even under heavy loads. Additionally, the included muffler reduces noise levels, creating a safer and more comfortable work environment. With a wide air input range of 30 to 80 PSI, this mixer offers flexibility in different operational settings, allowing for customized control depending on the specific requirements of your project.

Why Choose the Model G-RV

Choosing the Model G-RV means investing in a mixer that offers durability, performance, and efficiency. Its medium to heavy-duty capability makes it a versatile tool for a broad spectrum of industries, from chemical processing to food and beverage manufacturing. The combination of high-quality materials, such as the stainless steel propeller shaft and aluminum coupling, ensures long-lasting use and minimal maintenance. Arrow Mixing Products has a reputation for excellence, and the Model G-RV is a testament to our commitment to providing top-tier industrial mixing solutions.

Contact Arrow Mixing Products Today

Ready to elevate your mixing processes? Contact Arrow Mixing Products today to learn more about the Model G-RV and how it can meet your specific needs. Our team of experts is available to help you find the perfect mixer for your application. Shipping is available via UPS within the United States, and for other shipping options, please reach out to us directly. Don’t wait—enhance your operations with the reliable performance of the Model G-RV air mixer.

*Torque values and air consumption given at air pressure of 80 psi and motor speed 6,000 rpm and 2,000 rpm for Type 750 and Type 1500.

Shipping UPS in the United States only. Any other shipping should contact us.
