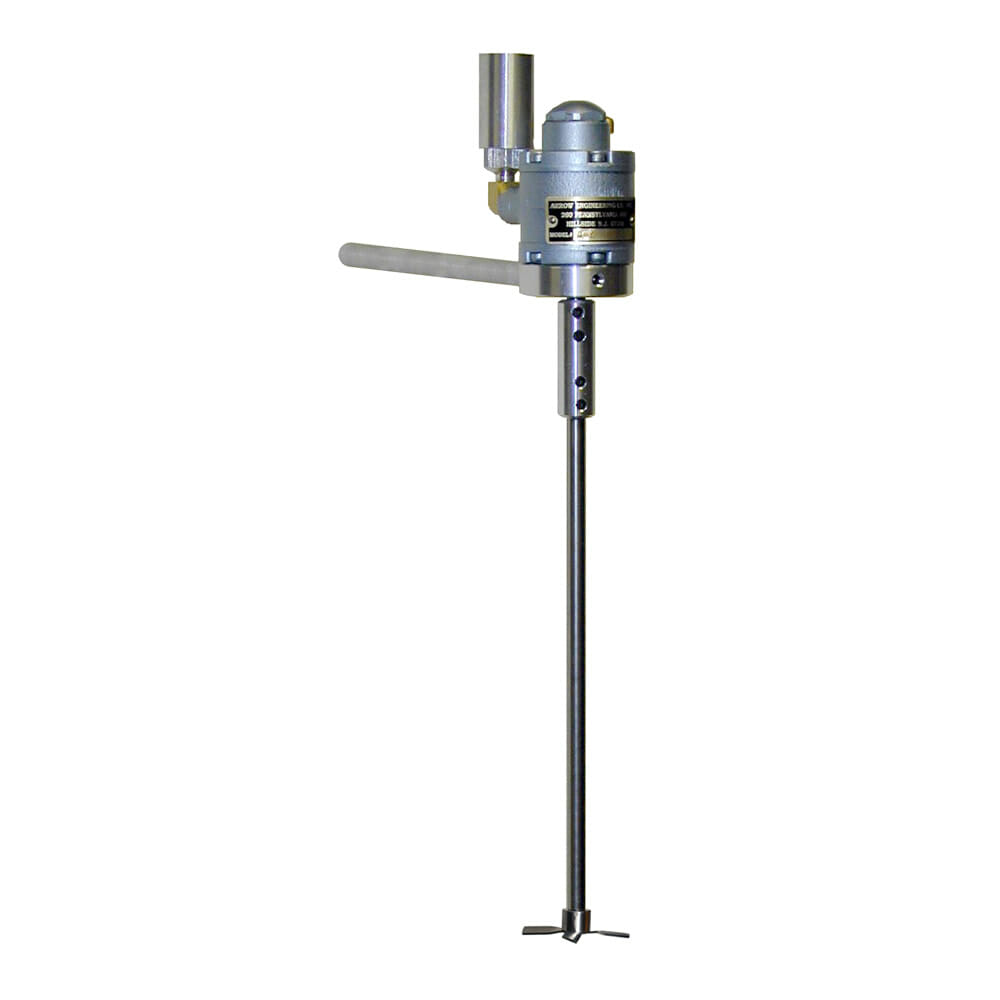

Model A5-RV Air Mixer

Arrow’s Model A5-RV is a light/medium-duty air mixer designed to meet your industrial mixing needs with efficiency and reliability. Like all Arrow Mixing Products mixers, this model is built to deliver high performance at a cost-effective price, making it an ideal choice for various mixing applications. Whether you need to mix chemicals, paints, or other industrial fluids, the Model A5-RV is equipped to handle the task with ease.

Key Features and Specifications

The Model A5-RV Mixer comes with an array of features that ensure optimal performance:

• Propeller Shaft: 3/8″ dia x 12″ (S-316-12)
• Propeller: 2 1/2″ dia (#25A)
• Coupling: Aluminum (CPL22-375)
• Mounting Rod: 9/16″ dia x 10″ (#15)
• Hose: 4 feet (#26)
• Muffler: (#19)
• Horsepower: 1/2
• Batch Size (Water): 100 liters
• Description: Light/Medium duty
• Gear Ratio: Direct
• Max RPM: 7,000
• Torque: 6 in-lbs (at 80 psi, 6,000 rpm)
• Air Input PSI: 30 to 100
• Air Consumption: 27 cfm (at 80 psi, 6,000 rpm)
• Motor Shaft Diameter: 3/8″
• Shipping Weight: 5 lbs (2.3 kg)
• Shipping: UPS in the United States only. For other shipping options, please contact us.

Enhanced Control and Safety

The Model A5-RV Air Mixer is designed with user control and safety in mind. The direct gear ratio allows for precise mixing speeds, ensuring that you get the exact consistency you need for your applications. The lightweight construction and ergonomic design make it easy to handle, while the included muffler ensures quiet operation. Additionally, the robust coupling and propeller materials guarantee durability and long-lasting performance, even under rigorous conditions.

Why Choose the Model A5-RV?

Choosing the Model A5-RV Mixer means opting for reliability, efficiency, and cost-effectiveness. Here are a few reasons why this model stands out:

• Versatility: Suitable for a wide range of light to medium-duty mixing tasks.
• Efficiency: High torque and rpm capabilities ensure thorough mixing in less time.
• Durability: Constructed with high-quality materials for long-term use.
• Cost-Effective: Offers high performance at a competitive price, ensuring great value for your investment.
• User-Friendly: Easy to set up and operate, minimizing downtime and maximizing productivity.

Contact Arrow Mixing Products Today

Ready to enhance your mixing processes with the Model A5-RV Mixer? Contact Arrow Mixing Products today to learn more about this versatile air mixer and how it can benefit your business. Our team is ready to assist you with any questions and provide the support you need to make the best choice for your industrial mixing needs.

This air powered mixer comes standard with:
3/8″ dia x 12″ propeller shaft (S-316-12)
2 1/2″ dia propeller (#25A)
Aluminum Coupling (CPL22-375)
9/16″ dia x 10″ mounting rod (#15)
4 foot hose (#26)
muffler (#19)

Horsepower: 1/2
Batch size water: 100 liters
Description: Light/Medium duty
Gear ratio: Direct
Max. rpm: 7,000
Torque:* 6 in-lbs
Air input psi: 30 to 100
Air consumption:* 27 cfm
Motor shaft dia.: 3/8″
Shipping Weight: 5 lbs (2.3 kg)

*Torque values and air consumption given at air pressure of 80 psi and motor speed 6,000 rpm and 2,000 rpm for Type 750 and Type 1500.

Shipping UPS in the United States only. Any other shipping should contact us.
