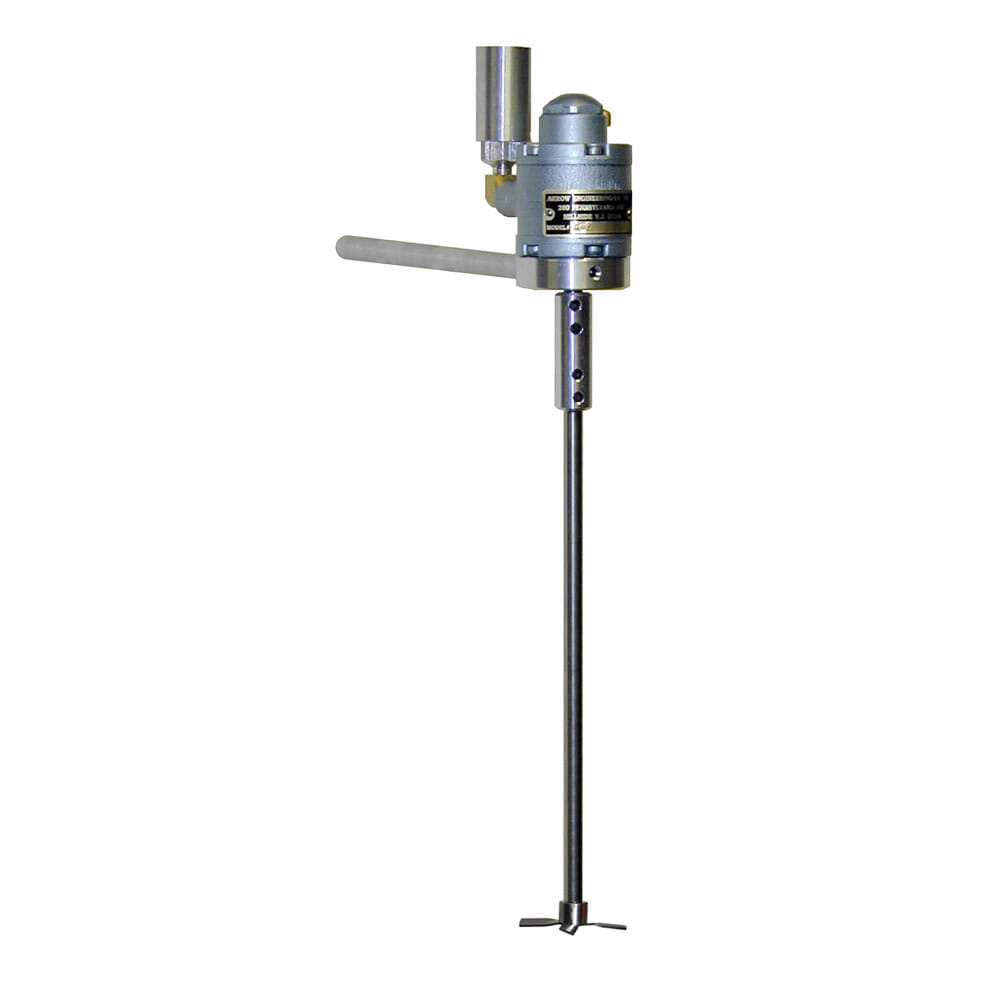

Model A-5 Air Mixer

The Model A-5 Air Mixer from Arrow Mixing Products is one of our top-performing air-powered mixers, designed to tackle light to medium workloads with ease. Perfect for a range of industrial applications, this mixer combines efficiency, durability, and ease of use. Dive into the details below to discover why the Model A-5 is the ideal choice for your mixing needs, and explore our site to view our extensive range of industrial air mixers.

Key Features and Specifications

The Model A-5 Air Mixer is equipped with high-quality components to ensure reliable performance and longevity. Its key features include:

• Propeller Shaft: 3/8″ diameter x 12″ length (S-316-12)
• Propeller: 2 1/2″ diameter (#25A)
• Coupling: Aluminum (CPL22-375)
• Mounting Rod: 9/16″ diameter x 10″ length (#15)
• Hose: 4 feet (#26)
• Muffler: Included (#19)
• Horsepower: 1/2 HP
• Batch Size (Water): 100 liters
• Duty: Light to Medium
• Gear Ratio: Direct
• Maximum RPM: 7,000
• Torque: 6 in-lbs (at 80 psi and 6,000 rpm)
• Air Input Pressure: 30 to 100 psi
• Air Consumption: 27 cfm (at 80 psi and 6,000 rpm)
• Motor Shaft Diameter: 3/8″
• Shipping Weight: 5 lbs (2.3 kg)
• Shipping: UPS within the United States only. Contact us for other shipping options.

Enhanced Control and Safety

The Model A-5 Air Mixer is designed with user safety and operational control in mind. Its robust construction and precise engineering allow for stable and secure mixing operations, reducing the risk of accidents and ensuring consistent results. The included muffler minimizes noise, creating a safer and more comfortable working environment.

Why Choose the Model A-5?

Choosing the Model A-5 Air Mixer means investing in a high-quality, reliable piece of equipment that can handle your business’s light to medium mixing tasks efficiently. Whether you’re working with small batches or medium-sized operations, this mixer delivers the power and performance you need. Its direct gear ratio and high maximum RPM ensure quick and thorough mixing, while the durable components guarantee long-term use with minimal maintenance.

Contact Arrow Mixing Products Today

Ready to upgrade your mixing capabilities with the Model A-5 Air Mixer? Contact Arrow Mixing Products today to learn more about this exceptional mixer and how it can benefit your operations. Our team is ready to assist you with any questions and provide you with the best mixing solutions tailored to your needs.

This industrial mixer comes standard with:
3/8″ dia x 12″ propeller shaft (S-316-12)
2 1/2″ dia propeller (#25A)
Aluminum Coupling (CPL22-375)
9/16″ dia x 10″ mounting rod (#15)
4 foot hose (#26)3/8″ dia x 12″ propller shaft (S-316-12)
2 1/2″ dia propeller (#25A)
muffler (#19)

*Torque values and air consumption given at air pressure of 80 psi and motor speed 6,000 rpm and 2,000 rpm for Type 750 and Type 1500.

Shipping UPS in the United States only. Any other shipping should contact us.
